Libra LED

Libra – balance between elegant design and LED energy efficiency

The elegantly styled Libra luminaire is also available in an LED version. As a fundamental element of the overall design, the bowl has been retained. Consequently, existing Libra luminaires can be retrofitted as LED fixtures by using thePhilips standerdized Ledgine O engine.

Benefits

• Versatile and efficient LED lighting solution in established luminaire family
• Sustainable and energy-saving solution with dimming options
• Elegant design, easy installation and maintenance

Features

• Wide variety of Ledgine O optics and LED configurations for different road profiles
• One luminaire family for a broad range of outdoor applications
• Solid and stylish construction
• Saves energy and reduces carbon footprint
• Easy installation; also retrofit solution for installed base

Applications

• Traffic routes: urban main roads, cycle paths, pedestrian crossings, roundabouts, parking areas
• Residential: streets, cycle paths and footpaths, roundabouts, squares/parks and playgrounds, parking areas
• City centers: boulevards and avenues, side streets, pedestrian crossings, squares and parks, public transport, cycle paths and footpaths, parking areas
• Large outdoor areas: industrial areas, harbors, airports, waterways, rail yards

Grandeville LED

Grandeville LED – design classic for any urban application

Today’s customers want a luminaire that provides both energy efficiency and a visually comfortable lighting effect. GrandeVille LED combines functional and aesthetical characteristics. Its classic design, with clean lines and robust materials, makes it ideal for all urban settings. The luminaire is well shielded and delivers clear white light, while at the same time enabling considerable energy savings. GrandeVille LED is suitable for mounting on poles or wall brackets. GrandeVille LED offers a choice of rotation-symmetric light distribution or asymmetric light distribution, which prevents undesired spill light.Cover needs to be ordered separately, available in grey or white.

Benefits

• Classic design – clean lines
• Visual comfort
• Energy-efficient LED technology

Features

• Classic design fitting any urban setting
• Robust materials
• Comfortable white light

Applications

• Residential streets
• Foot and cycle paths
• Parking areas

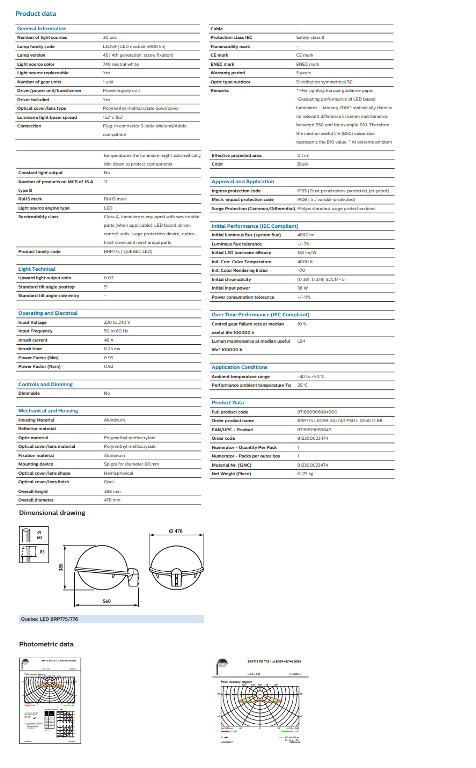

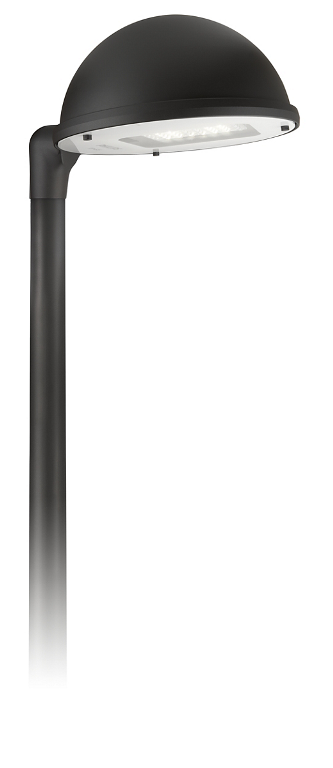

Quebec LED

Quebec LED – setting the standard in outdoor lighting

Quebec LED is a stylish luminaire designed to brighten up residential streets and pathways, precincts, parks and other urban spaces. It incorporates the energy efficient LEDGINE-O engine with high-performance optics, while at the same time retaining the character of the original Quebec fixture. It also offers a choice of bowl versions and mounting options. All these factors together make Quebec LED a versatile solution that can meet the needs of any project.

Benefits

• Timeless, stylish design
• Tool-less maintenance
• High performing LEDGINE-O engine, also for retrofit

Features

• LED luminaire offering a high level of energy efficiency and an extensive range of dimming options
• Wide range of high-performance optics for either road or area lighting distributions
• Installation flexibility: post-top, side-entry, double post-top, or wall mounting
• Choice of clear or frosted flat glass or opalized polycarbonate bowl

Applications

• Residential streets, pathways, precincts, parks and playgrounds, parking areas
• City centers: side streets, walkways, squares and parks, public transport, parking areas
• Private sites, e.g. theme parks and zoos

Coreline tempo large

BVP130 LED260-4S/740 A

CORELINE TEMPO LARGE – LED module 26000 lm – 4th generation, screw fixation – 740 neutral white – Asymmetrical

CoreLine tempo large is a highly efficient range of floodlights designed for 1:1 retrofit
replacement of conventional technology, while retaining the same electrical installation and
poles. A limited range of options makes it easy to find the best lux-for-lux replacement.The
easy-to-install CoreLine tempo large offers lumen packages for many different application
areas as well as a choice of high-performance asymmetrical and symmetrical optics. Ushaped
universal mounting bracket and external quick 3-poles IP68 connector.

Benefits

• Fast payback:energy savings 65%
• Low-maintenance thanks to the long lifetime of the luminaire; simple to install and connect
• Robust, high-quality finish

Features

• Highly efficient: up to 130 lm/W
• Designed for 1:1 retrofit replacement of conventional technology up to 400 W HPI-T
• System flux: 8000,12000,16 000, 21000 and 26000 lm
• Long lifetime of 75Khrs L80 at Tq +25 ºC
• High-performance asymmetrical and symmetrical optics
• U-shaped universal mounting bracket and external quick 3-poleIP68 connector
• High surge protection : 6 kV/8kV
• Robust design IP66-IK08
• Extension of the options for projects : Dali control, 3000K CCT, special coatings…

Applications

• Areas and recreational sports facilities
• Building facades
• Billboards

Coreline tempo small

BVP110 LED42/NW A

40 pcs – LED module 4200 lm

CoreLine tempo small is a highly efficient range of luminaires designed for 1:1 retrofit
replacement of conventional technology, while retaining the same electrical installation and
poles. It offers lower power consumption and requires less investment than conventional
installations. A limited range of options makes it easy to find the best lux-for-lux
replacement.;The easy-to-install CoreLie tempo small offers a system flux that covers
many different application areas and it comes with both high-performance asymmetrical
and symmetrical optics.

Benefits

• Fast payback:energy savings
• Low-maintenance thanks to the long lifetime of the luminaire; simple to install and connect
• Robust, high-quality finish

Features

• Highly efficient : up to 110 lm/W
• Designed for 1:1 retrofit replacement of conventional technology up to 70W HID
• Long lifetime of 75Khrs L80 at Tq +25 ºC
• System flux : 4200 lm
• High-performance asymmetrical and symmetrical optics
• External quick 3-pole IP68 connector
• High surge protection : 10 kV

Applications

• Bilboards/advertising lighting
• Landscape features
• Security and amenity lighting
• General lighting

ClearFlood

BVP650 LED80–4S/740 PSU S ALU

ClearFlood – LED module 8000 lm – LED – Power supply unit -Symmetrical – Aluminum

ClearFlood is a range of floodlights that lets you choose the exact number of lumens you
need for your application. Designed around state-of-the-art LEDs and extremely highefficiency
optics, this very competitive solution offers an industry-leading lux per euro ratio
and significant energy savings. The choice of different optics opens up new application
possibilities for LEDs. ClearFlood is easy to install and perfect for replacing conventional
light-points as it uses the same electrical installation and poles. Selecting the required light
output is also straightforward.

Benefit

• Designed for 1:1 retrofit, perfect for replacing conventional technology retaining the same electrical installation and poles.
• Highly competitive solution offering an outstanding lux/euro ratio and energy savings.
• Offering a large variety of lighting needs from recreational sport, areas and even road and street by providing a variety of optics used in the range.
• Multiple control options ensure increased efficiency with intelligent lighting.

Features

• Diversity of lumen outputs in only one form factor up to 37 klm (system)
• Easy replacement of gear and PCB, no tooling required
• CLO, DALI, CityTouch Ready controls
• High LED and optical efficiency up to 145lm/W
• 100% Philips components
• P66 and IK09 protection
• Long lifetime 100 Khrs (L80B10 at Ta 25°C)
• Built-in driver class I & II
• high surge protection : 6kV
• Wide choice of optics to suit all applications – Sport and Areas lighting – Asymmetrical, Road and Symmetrical beams with or without louver (optional). New Asymmetrical Optic for Sport lighting (Tennis…)

System

• BVP650 LED360 up to LED440 (are compatible with PerfectPlay Lighting systems and controls options in sports and area applications For recreational sports locations, ClearFlood can be connected to PerfectPlay. This is an easy to use, dedicated system for remote management of both indoor and outdoor recreational sports facility lighting. It meets sports lighting norms and ensures players’ comfort and safety, and provides operational efficiency and significant energy reductions.

Applications

• Small-scale recreational sports facilities
• Industrial areas
• Parking lots
• Building facades
• Billboards
• Roundabout, Intersection

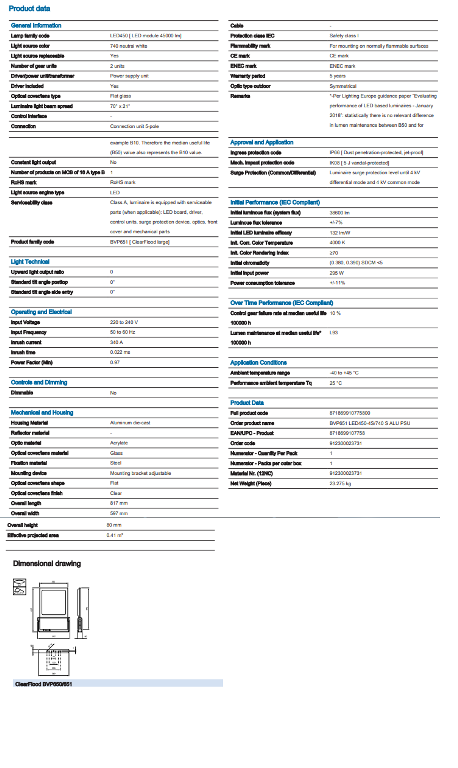

ClearFlood Large

BVP651 LED450-4S/740 S ALU PSU

ClearFlood large – LED module 45000 lm – LED – Power supply unit -Symmetrical – Gray

ClearFlood Large is designed to meet the requirements of a wide range of floodlighting
applications. It also includes all the necessary control features and interfaces to make it
future-proof and even more efficient. ClearFlood Large lets you choose the exact number
of lumens you need for your application. Incorporating extremely high-efficiency optics and
state-of-the-art LEDs, it is a highly competitive solution offering an outstanding lux/euro
ratio and energy savings of up to 50% (without the use of additional controls). The wide
choice of optics ensures maximum application coverage. ClearFlood Large is easy to
install − you simply plug it in and select the best option for your needs. Perfect for replacing
conventional technology and enabling intelligent lighting control while retaining the same
electrical installation and poles.;Tailor made solution : For tuned project solutions Philips
can support with the exclusive L-Tune tool :build required flux to the best balance of
life,maintained flux, energy,cost and product type.

Benefit

• Designed for 1:1 retrofit, perfect for replacing conventional technology retaining the same electrical installation and poles.
• Offering a large variety of lighting needs from recreational sport, areas and even road and steet , by providing a variety of optics used in the range.
• Fast payback and low Total Cost of Ownership with energy savings and minimum maintenance costs
• Multiple control options ensure increased efficiency with intelligent lighting (DALI, CityTouch ready geolocalization…)

Features

• Designed for 1:1 retrofit up to 1000 W HID
• Wide range of lumen packages between 30 klm and 64 klm (system)
• Easy replacement of gear and PCB, no tooling required.
• Wide range of control options, such as CityTouch Ready, CLO, DALI, 1-10 V
• LEDs and optics deliver highest level of efficiency (up to 130 lm/W)
• 100% Philips components.
• Wide choice of optics to suit all applications – Sport and Areas lighting – Asymmetrical, Road and Symmetrical beams with or without louver (optional).New Asymmetrical Optic for Sport lighting (Tennis…)
• Optimized architecture for 4 kV surge (optional 10 kV).
• IP66 and IK08 protection.
• Long lifetime : 100 Khrs (L80B10 at T a 25°C)

System

• Compatible with PerfectPlay Lighting systems and controls options in sports and area applications. For recreational sports locations, ClearFlood can be connected to PerfectPlay. This is is an easy to use, dedicated system for remote management of both indoor and outdoor recreational sports facility lighting. It meets sports lighting norms and ensures players’ comfort and safety, and provides operational efficiency and significant energy reductions.

Applications

• Airports
• Harbors
• Large recreational sports facilities
• Industrial areas
• Roundabouts and motorway junctions

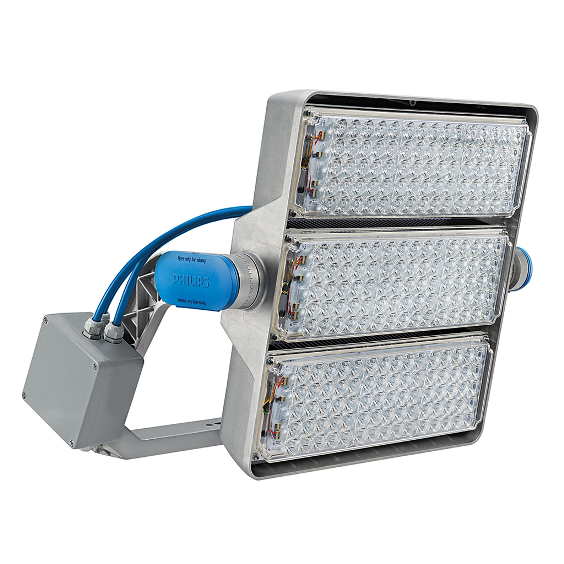

ArenaVision LED sports lighting system

Professional sports lighting system

The Philips ArenaVision LED Sports Lighting System provides a complete solution for your
professional sport field lighting needs, that meets all requirements for todays’ and future
broadcasting, and enhances the fan experience in your venue. Providing highest quality
LED lighting for both outdoor stadiums and indoor arenas, the LED ArenaVision can also
be seamlessly integrated into a lighting experience show in modern, multi-purpose
venues.The system is always bundled complete including the LED ArenaVision luminaires
with remote driver boxes plus controls that you can tailor to your needs, from Eco to
Effects to Experience – the ArenaVision LED Sports Lighting System does it all for superior
field performance and experience lighting!

Benefits
• Highly efficient and long lasting LED lighting systems for sports
• Comes with a remote ballast for easy maintenance
• Offered in a variety of lumen packages and optics to meet needs for all sports and
events
• High color rendering and flicker free for superb spectator and broadcasting experience
• Can be programmed for light effects, and can be integrated in light shows, with controls

Features
• Outdoor and Indoor versions available
• CRI up to 90, TLCI up to 86 and very low flicker for demanding professional
broadcasting
• System ready and always provided with controls
• Application flexibility via seven optical distributions
• IP66 sealed light engine modules and separate driver box

Application
• Arena and Sports

Sportslighter Series – SCTII

Sportslighter Series – controlled high-intensity illumination

SCTII Sportslighter units are floodlights for controlled high-intensity illumination in sports
arenas, playing fields, golf driving ranges and other sporting areas as well as fairgrounds,
work areas and facade lighting applications. It delivers NEMA 3 through 6 beam pattern
with tempered clear glass lens

Benefits
• Durable and lasting construction
• Aiming flexibility
• Superior reflectivity

Features
• Die-cast aluminum housing
• Adjustable yoke
• Highly efficient reflector

Application
• Arena and Sports
• Fountains and Pools
• Bridges, Monuments, Facades
• Security Lighting
• Sign Lighting
• Walkways

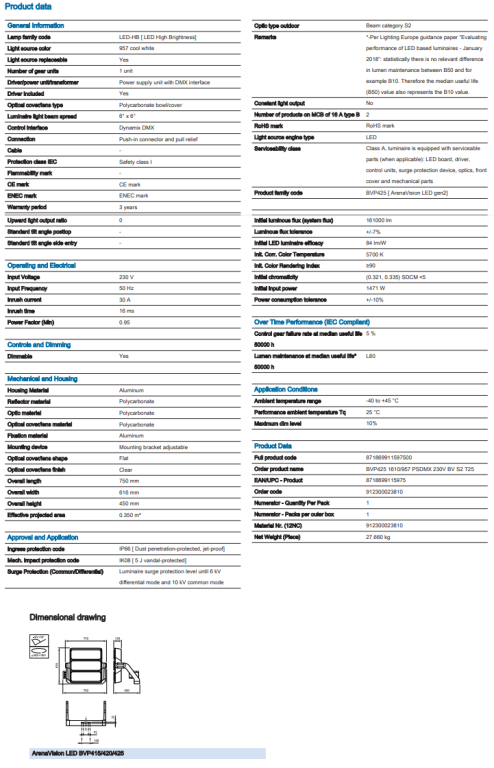

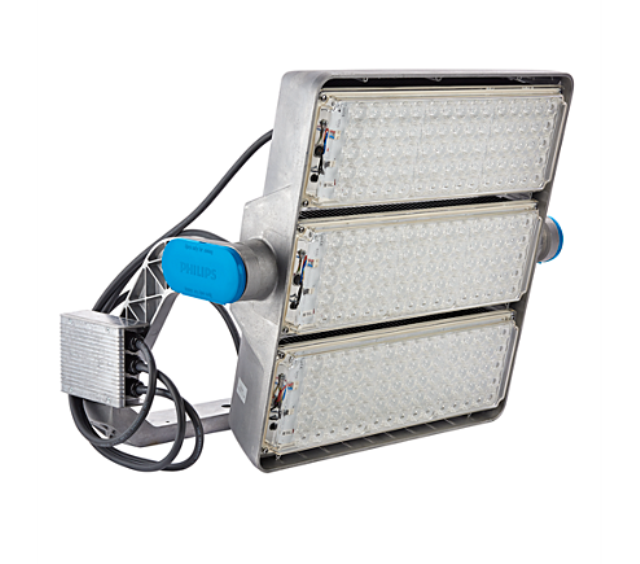

ArenaVision LED gen2

BVP425 1610/957 PSDMX 230V BV S2 T25

ArenaVision LED gen2 – 957 cool white

The Philips ArenaVision LED gen2 floodlighting system is an innovative LED pitch-lighting
solution that supports the latest TV broadcasting standards and features a control platform.
Designed exclusively for sports and multifunctional lighting applications, ArenaVision LED
gen2 luminaires offer outstanding light quality, effective thermal management, and long
lifetime. The floodlight range includes versions with three and two LED light modules,
which function with an external driver box – separate for use at a distance from the
floodlight (BV version), or pre-fixed onto the mounting bracket of the floodlight (HGB
version) for ease of installation and lower initial cost.

Benefit

• Maximum design flexibility and a high level of lighting quality – no flicker effect in televised applications
• Floodlight system delivers maximum light output while ensuring effective thermal management in order to maximize lifetime and minimize maintenance costs
• Advanced DMX driver box of ArenaVision LED gen2 meeting the highest performance standards enables the luminaire interacting with Philips’ external ArenaVision lighting dynamic control system

Features

• LED technology allows instant, dynamic control of the lighting highly efficient optical systems
• Philips know-how and global support in creating lighting for broadcasting and value-adding experiences

Applications

• Outdoor and indoor sports arenas and stadiums
• Indoor sports halls (aquatic centers, velodromes, ice hockey arenas, etc.)
• Multipurpose arenas
