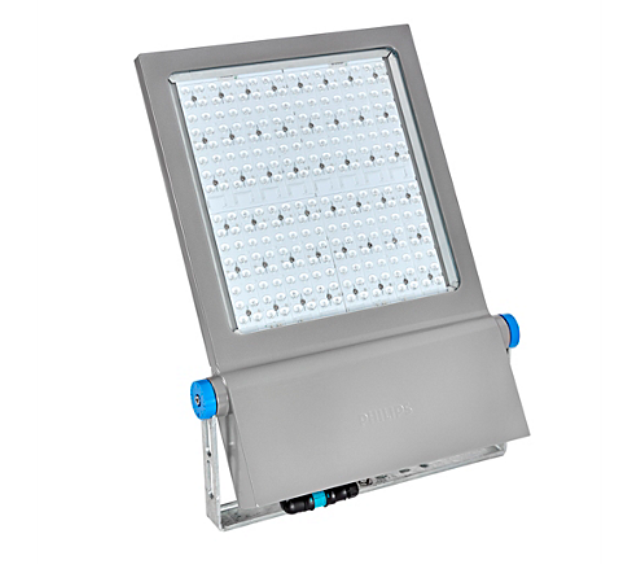

Coreline tempo large

BVP130 LED260-4S/740 A

CORELINE TEMPO LARGE – LED module 26000 lm – 4th generation, screw fixation – 740 neutral white – Asymmetrical

CoreLine tempo large is a highly efficient range of floodlights designed for 1:1 retrofit
replacement of conventional technology, while retaining the same electrical installation and
poles. A limited range of options makes it easy to find the best lux-for-lux replacement.The
easy-to-install CoreLine tempo large offers lumen packages for many different application
areas as well as a choice of high-performance asymmetrical and symmetrical optics. Ushaped
universal mounting bracket and external quick 3-poles IP68 connector.

Benefits

• Fast payback:energy savings 65%
• Low-maintenance thanks to the long lifetime of the luminaire; simple to install and connect
• Robust, high-quality finish

Features

• Highly efficient: up to 130 lm/W
• Designed for 1:1 retrofit replacement of conventional technology up to 400 W HPI-T
• System flux: 8000,12000,16 000, 21000 and 26000 lm
• Long lifetime of 75Khrs L80 at Tq +25 ºC
• High-performance asymmetrical and symmetrical optics
• U-shaped universal mounting bracket and external quick 3-poleIP68 connector
• High surge protection : 6 kV/8kV
• Robust design IP66-IK08
• Extension of the options for projects : Dali control, 3000K CCT, special coatings…

Applications

• Areas and recreational sports facilities
• Building facades
• Billboards
