ArenaVision MVF403

MVF403 MHN-LA1000W/956 A1 SI

ARENAVISION – MASTER MHN-LA – 1000 W

ArenaVision MVF403 takes sports floodlighting to the highest level, offering very high light
output, optical efficiency, ease of installation, reliability and flexibility. It is ideal for indoor
sports halls (1000 W version) as well as many outdoor sports and other lighting
applications. The integrated system of oval optics and compact double-ended MHN-LA
1000W or MHN-SA HO 2000W lamps ensures outstanding system efficiency and low
glare. A built-in reflector skirt reduces spill light and glare even further. The MHN-SA HO
2000W/956 and MHN-LA 1000W/956 lamps meet the highest international CTV
requirements. With the MHN-LA 1000W/842 lamp, the natural color rendering and
comfortable atmosphere are well suited to TV and filming as well as other floodlighting
applications. Hot re-strike versions are available for all lamp types, enabling immediate
restoration of lighting after power supply failure. The (optional) flicker-free version of
ArenaVision MVF403 MHN-LA 1000W is designed to ensure that the flicker effect is fully
eliminated in order to guarantee perfect images filmed with super-slow-motion cameras at
sports events. The flicker-free version of ArenaVision MVF403 comes equipped with a
special electronic ignitor, which works in combination with Philips’ electronic flicker-free
ballast GearUnits (ECM330), to be ordered separately.

Benefits

• Innovative floodlight with Philips’ compact single-ended lamp; dedicated optics ensure maximum optical efficiency and enable accurate light distribution with a minimum of spill light
• Quartz metal halide lamp meets the most demanding lighting and TV broadcast requirements with excellent color rendering
• The flicker-free version completely eliminates flicker effect, thereby guaranteeing perfect images filmed with super-slow-motion cameras

Features

• High-output compact single-ended metal-halide lamp with excellent color rendering
• Dedicated precision optics
• IP65
• Safety knife connector system
• Electronic hot-restrike
• Flicker-free light version for super-slow-motion cameras

Applications

• Outdoor sport stadiums

ArenaVision MVF404

MVF404 MHN-SEH2000W/956 B1 SI

ARENAVISION – MASTER MHN-SE High Output – 2000 W – Beam category B1

The ArenaVision MVF404 floodlight – designed for outdoor sports stadiums – dramatically
increases the theatrical and emotional impact of sports for TV audiences and spectators,
while allowing the players to perform under optimal visual conditions. Thanks to the
innovative Philips MHN-SE 2000 W high-output compact single-ended metal-halide lamp
and high-tech single-piece precision optics, ArenaVision MVF404 offers much higher
optical efficiency than ever before. In addition, this 2 kW floodlight boasts easy lamp fitting
and replacement, full IP65 compliance, safety knife connector system and a breakthrough
electronic hot-restrike solution – while continuing to deliver all the traditional benefits of
Philips ArenaVision systems. The (optional) flicker-free version of ArenaVision MVF404 is
designed to ensure that the flicker effect is fully eliminated in order to guarantee perfect
images filmed with super-slow-motion cameras at sports events. The flicker-free version of
ArenaVision MVF404 comes equipped with a special electronic ignitor, which works in
combination with Philips’ flicker-free electronic-ballast GearUnits (ECM330), to be ordered
separately.

Benefits

• Innovative floodlight with Philips’ compact single-ended lamp; dedicated optics ensure maximum optical efficiency and enable accurate light distribution with a minimum of spill light
• Quartz metal halide lamp meets the most demanding lighting and TV broadcast requirements with excellent color rendering
• The flicker-free version completely eliminates flicker effect, thereby guaranteeing perfect images filmed with super-slow-motion cameras

Features

• High-output compact single-ended metal-halide lamp with excellent color rendering
• Dedicated precision optics
• IP65
• Safety knife connector system
• Electronic hot-restrike
• Flicker-free light version for super-slow-motion cameras

Applications

• Outdoor sport stadiums

High Power GearUnits

ECM330 MHN-LA1000W 220-480V

GearUnits – MASTER MHN-LA – 1000 W

Philips is one of the few companies able to provide total floodlight system solutions
comprising all necessary elements – floodlight, lamp source and control gear unit. Our
innovative high-power GearUnits are designed to meet our customers’ need for a compact
gear solution that is completely ready for installation. The pre-wired high-power control
gear units are intended for use in combination with floodlights that are suitable for highwattage
HID lamps and cannot integrate electrical components because of limited space or
high temperatures. A gear unit contains all electrical components (ballast, ignitors,
capacitors), wiring and terminal blocks needed to ensure initial lamp ignition and proper
operation of the lamp in stabilized current. The electromagnetic high-power GearUnits are
available in both IP20 (ECB330) and IP65 (ECP330) versions. Within the GearUnits family
there is also an electronic flicker-free ballast version (ECM330) available in IP20, which is
suitable for the MVF403 MHN-LA 1000 W and MVF404 MHN-SE HO 2000 W ArenaVision
floodlights. The ArenaVision floodlight family is specially designed for TV broadcasts from
indoor and outdoor sports facilities. Electronic-ballast GearUnits completely eliminate the
flicker effect, thereby guaranteeing perfect images filmed with super-slow-motion cameras.

Benefits

• Guarantees reliable functioning of total Philips floodlight system
• Compact in size and ready for easy installation
• Serviceable – all components are easily replaceable independently

Features

• Sufficiently high power factor
• Available in IP20 and IP65 versions
• Suitable for 2000, 1000, 600 and 2×400/600 W lamps in Philips floodlights
• Flicker-free light with electronic-ballast version for super-slow-motion cameras

Applications

• IP20 version: indoor, inside cabinets only
• IP65 version: for outdoor use

Form Ten Round Area CA

Form Ten – unparalleled performance, uncompromised durability

The Form Ten Round CA luminaire’s low profile and cylindrical shape suggests uses
where the lighting plan brings luminaires closer to eye level. Round luminaires
accommodate all six Philips Gardco optical systems and therefore direct a higher
percentage of lumens onto desired areas than any other type of round luminaire. Housings
are spun aluminum with a circumferential reveal and are sealed against penetration by
insects and the elements with high compliance, memory retentive, extruded silicone
gaskets. CA Luminaires are available up to 1000MH.

Benefits
• Enables wider pole spacings
• Improved lumen efficiency
• Enables reorientation in the field should requirements change
• Suitable for a variety of applications
• Ensures durable and lasting construction

Features
• Conical fan reflector
• Highly reflective material
• Offers a variety of optical distributions
• Rotatable optics
• Rugged construction

Application
• Parks and Plazas
• Road and Street

SlenderForm Round Arm Mount SFRA

SlenderForm – defining a new standard in outdoor illumination

Philips Gardco SlenderForm luminaires combine LED performance excellence and
advanced LED thermal management technology with a distinct styling to provide outdoor
area lighting that is both energy efficient and aesthetically pleasing. SlenderForm is
defined by its high performance, sleek low profile design and rugged construction. The
advanced LED optical systems provide IES Types II, III, IV and V distributions. Surge
protection included with all SlenderForm luminaires.

Benefits
• Provides architectural cohesion throughout entire exterior site
• Provides precise illumination patterns
• Assures long component life
• Protects from moisture, dust and insects
• Withstands even the harshest environmental conditions

Features
• Complete site and area lighting solutions package
• Aluminum heat sink fins built into top of luminaire
• Weatherproof gasketing
• Carries a 3G vibration rating
• IP66 rated

Application
• Parks and Plazas
• Road and Street
• Bridges, Monuments, Facades

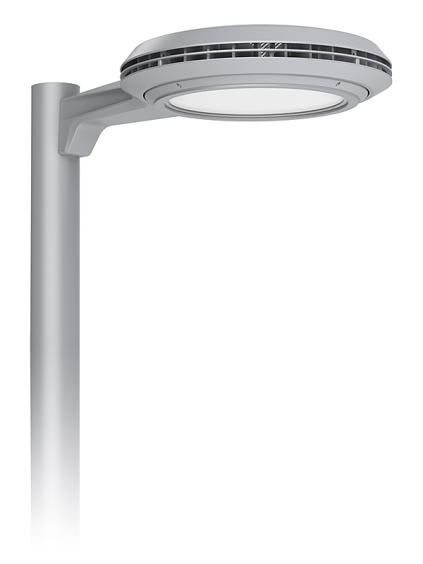

SlenderForm Round LED Arm Mount Comfort

Defining a new standard in outdoor illumination

Gardco SlenderForm LED arm mount comfort SFRA features a distinct styling to provide
outdoor area lighting that is both energy efficient and aesthetically pleasing. Comfort optics
are designed to enhance visual comfort by reducing glare. Type 1, 2, 3, and 5 optical
distributions are available with lumen output up to 9,500 lumens.

Benefits
• Comfort optics provide a low glare lighting solution to enhance the user experience
• Low profile design blends with architecture
• Two light engines available for both pedestrian and performance lighting tasks

Features
• Two light engines to suit any lighting need
• IP66 Rated Housing
• Type 1, 2, 3, and 5 optical distributions available
• 3G Vibration Rating

Application
• Parks And Plazas
• Bridges, Monuments, Facades
• Road And Street

Gullwing Area Small LED GL13

Gullwing LED – the grace and style of Gullwing with the efficiency and sustainability of LED

Successfully merging practical engineering, sleek aesthetics and industry-leading LED
performance into a luminaire of distinctive design and style, the Gullwing LED promptly set
a new standard in energy-efficient area illumination. Now these identical qualities have
been scaled down, creating a luminaire that is ideal for use on walkways, bicycle paths and
in park settings. Developed for mounting heights of 15′ to 20′ and lower, the GL13 Gullwing
LED effectively combines the energy-saving performance and graceful aesthetics that are
essential for modern-day lower level lighting applications. Construction Rugged die cast
aluminum construction, concealed hardware, comprehensive gasketing and fade and
abrasion resistant finishes combine to create a luminaire of enduring quality. Performance
Within this streamlined luminaire is an LED array system that delivers one of four unique
distribution patterns. This system provides improved light output and a longer lifespan than
traditional sources, while consuming a small fraction of the power. Maintenance Ease
Toolless access for installation and service is a Philips Gardco trademark. A quick entry
door handle provides complete access to the luminaire’s optical, electrical and mounting
hardware systems.

Benefits
• Improved light output and lifetime over traditional sources
• Eliminates need for a support arm
• Easy installation and maintenance
• Enduring quality and reliability
• Fade and abrasion resistant

Features
• One-piece die cast aluminum housing
• Mounts directly to a pole or wall
• Integral extruded aluminum thermal radiation fins
• Tool-less access to internal components
• Sleek profile and rugged construction

Application
• Parks and Plazas
• Road and Street

Gullwing Area Large LED GL18

Gullwing LED – the grace and style of Gullwing with the efficiency and sustainability of LED

In today’s environment, sustainability and saving energy are leading factors in selecting a
luminaire. With the introduction of the LED Gullwing, Philips Gardco again leads the way. It
is simply not enough to place LEDs into an existing luminaire. LEDs are more sensitive and
behave much differently than traditional HID sources. As a result, the Gullwing has been
thoroughly retooled, reengineered, and reconceived – purpose-built around advanced LED
arrays. Of course, like all Gardco performance optics, illumination is glare-free with full
cutoff. The luminaire preserves the architectural character and symmetry that has elevated
Gullwing to an iconic, and often copied, area lighting presence. With architectural lighting’s
most beautiful high-performance luminaire, LED takes flight. With a profile a mere six
inches deep, these eighteen-inch luminaires usher in a new paradigm in sustainable
outdoor illumination. Aesthetically, the LED Gullwing draws strength from a simplicity of
form that makes it a natural complement to any architectural vocabulary. The subtle
elimination of the mounting arm allows the LED Gullwing an uninterrupted transition from
luminaire to pole. The striking effect is that the luminaire and arm become one. But this
design serves practical purposes as well, minimizing wind load and strengthening the
assembly.

Benefits
• Improved light output and lifetime over traditional sources
• Eliminates need for a support arm
• Easy installation and maintenance
• Enduring quality and reliability
• Fade and abrasion resistant

Features
• One-piece die cast aluminum housing
• Mounts directly to a pole or wall
• Integral extruded aluminum thermal radiation fins
• Tool-less access to internal components
• Sleek profile and rugged construction

Application
• Parks and Plazas
• Road and Street

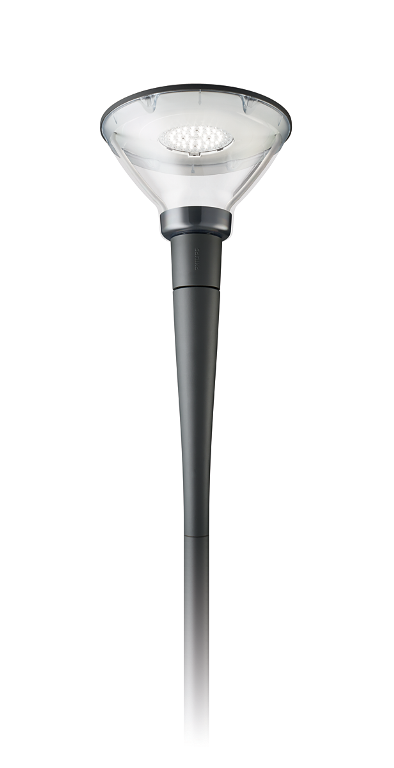

CityCharm Cone

BDS491 GRN30-/740 II DM GRB GR C4K 60

CityCharm Cone – LED GreenLine 3000 lm – Distribution medium – Spigot for diameter 60 mm

The CityCharm range is designed for use in urban areas where comfortable lighting,
ambiance and design play an important role. It offers two iconic, timeless designs
(Cordoba and Cone) and various accessories, enabling you to create a lighting solution
that carries your signature, both by day and by night.;CityCharm provides high visual
comfort while maintaining excellent performance. It offers a choice of two innovative new
Philips Lighting technologies: GentleBeam, which maximizes visual comfort, or
ClearGuide, which optimizes vertical illumination and visual guidance.;A variety of
dedicated brackets and masts enables you to reshape your residential areas and city
centers in the most elegant way imaginable.;Further information about GentleBeam and
ClearGuide technology can be found in the Product Guide.

Benefits

• Elegant iconic range delivering comfortable lighting with GentleBeam or ClearGuide technology
• Excellent lighting performance and high quality of product and finishing
• Suitable for both renovation projects and new installations thanks to dedicated brackets and poles

Features

• Choice of luminaire shapes, color effects, and dedicated poles and brackets
• Diffusing tools to create visual comfort and colored parts to enhance ambiance
• A broad range of lumen outputs and optics to ensure maximum efficiency at all lighting levels
• Optimized total cost of ownership
• Compatible with all standard and advanced Philips lighting systems and CityTouch-ready
• Easy on-site maintenance of the driver

Applications

• Residential areas
• Footpaths and cycle lanes
• Parks and boulevards

CityCharm Cordoba

BDS490 GRN20-/830 II S GRB DF GR MSP CLO

CityCharm Cordoba – LED GreenLine 2000 lm – Symmetrical – Diffuser element – Marine salt protected coating – Constant light output and LumiStep dimming 8 hours

The CityCharm range is designed for use in urban areas where comfortable lighting,
ambiance and design play an important role. It offers two iconic, timeless designs
(Cordoba and Cone) and various accessories, enabling you to create a lighting solution
that carries your signature, both by day and by night.;CityCharm provides high visual
comfort while maintaining excellent performance. It offers a choice of two innovative new
Philips Lighting technologies: GentleBeam, which maximizes visual comfort, or
ClearGuide, which optimizes vertical illumination and visual guidance.;A variety of
dedicated brackets and masts enables you to reshape your residential areas and city
centers in the most elegant way imaginable.;Further information about GentleBeam and
ClearGuide technology can be found in the Product Guide.
